Hypoid Gear Mesh and Dynamic Simulation Program (HGSim)

HGSim is an engineering software package for performing design, analysis and trouble-shooting of hypoid and spiral bevel geared rotor systems commonly used in the automotive, off-highway equipment and aerospace industries. The program does so by processing hypoid and bevel gear tooth contact analysis for the purpose of generating gear mesh and dynamics models. The program can be applied to study quasi-static tooth contact analysis, gear meshing time-varying properties, and linear and nonlinear gear pair dynamics that include the effects of shaft, bearing and housing dynamic stiffnesses. HGSim also possesses a user-friendly GUI-based software environment that eases the application of various mesh and dynamic modeling options. It is also capable of importing and exporting results from other related tooth contact analysis and finite element programs.

Multiple model selection

main window

Gear mesh model options

  • Pitch Cone mesh option
  • Tooth Contact Analysis mesh option
  • CAPP/CALYX-based Mesh Option
  • Other FEA Mesh Option
  • HAP-based Mesh Option

Dynamic model

  • Linear time-invariant
    Gear backlash nonlinearity is neglected
    Gear mesh parameters including mesh point, line of action vectors and mesh stiffness are time-invariant
    • 2-DOF: Pure torsional vibration model of a hypoid gear pair
    • 4-DOF: Pure torsional vibration model of a hypoid geared rotor system
    • 10-DOF: Coupled translation-torsional vibration model of a hypoid geared rotor system
    • 14-DOF: Coupled translation-rotational vibration model a hypoid geared rotor system.
  • Nonlinear time-varying
    Gear backlash nonlinearity is considered;
    Gear mesh parameters including mesh point, line of action vectors and mesh stiffness are time-varying.
    • 2-DOF: Pure torsional vibration model of a hypoid gear pair;
    • 4-DOF: Pure torsional vibration model of a hypoid geared rotor system;
    • 10-DOF: Coupled translation-torsional vibration model of a hypoid geared rotor system;
    • 14-DOF: Coupled translation-rotational vibration model a hypoid geared rotor system.



Mesh and Dynamic calculation

dynamic window

Result Post-processing and output

post processor

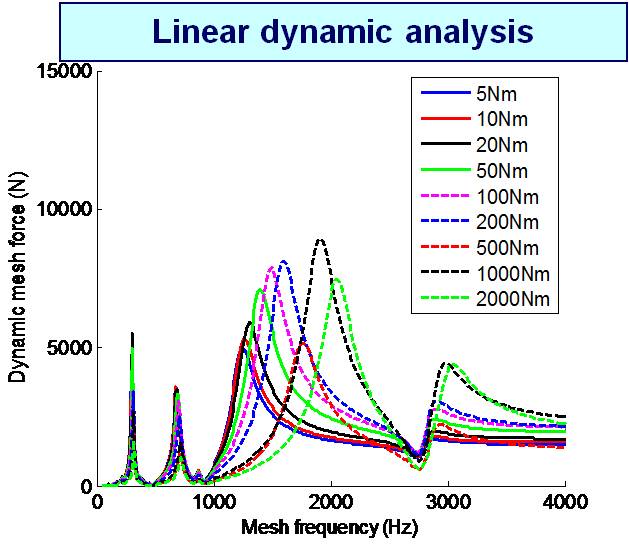

linear analysis

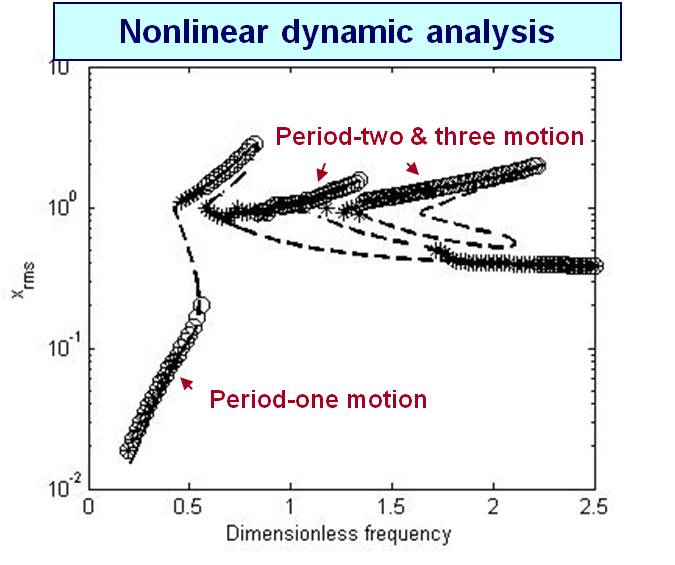

non linear analysis

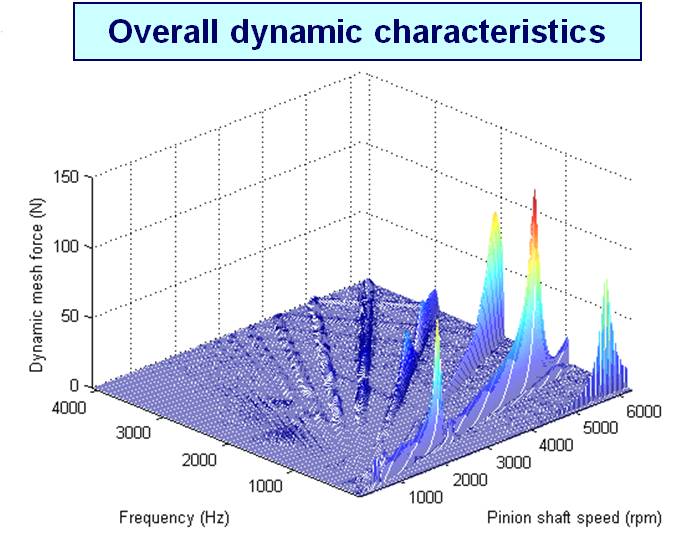

overall dynamics


Compatibility with third party software programs

software compatibility

For more technical information, please contact Dr. Yawen Wang (yawen.wang@uta.edu).
